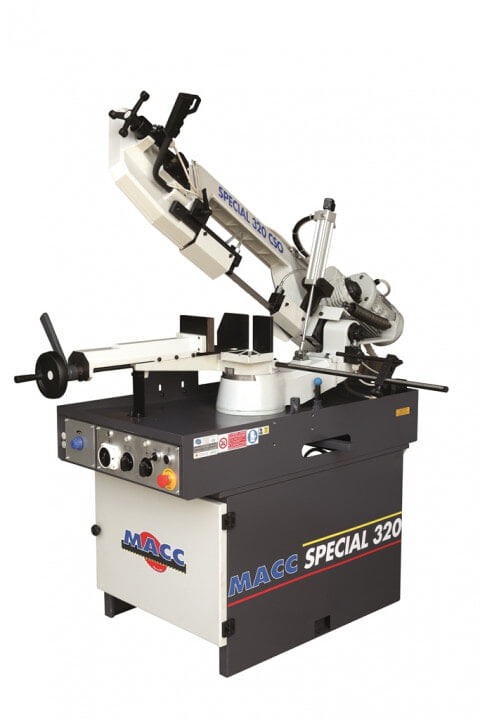

BANDSAW CUTTING MACHINE MACC SPECIAL 320 CSO

TECHNICAL DATA AND NORMAL EQUIPMENTSawing machine with cutting by arc fall regulated by a hydraulic circuit, manual bar feeding and clamping, manual head return.Vertical rotation on pivot with backlash-free adjustable conical bearings.Belt drive with two-speed motor and special reduction gear with bronze gear and hardened and ground worm screw.Properly sized flywheels.Sturdy belt guides made with watertight invitation bearings and adjustable widia plates.Belt tension obtained by electromechanical device with blade rotation microswitch control.Vice with quick locking deviceAccident prevention device on the flywheel casing, on the control knob and on the blade.Hydraulic cylinder for controlled descent.Cutting thickness 1.2 mmCutting range from 0 to 60 ° rightAdjustable stop for cuts of the same size.24 V low voltage system0.06 kW electric pump for belt refrigeration
