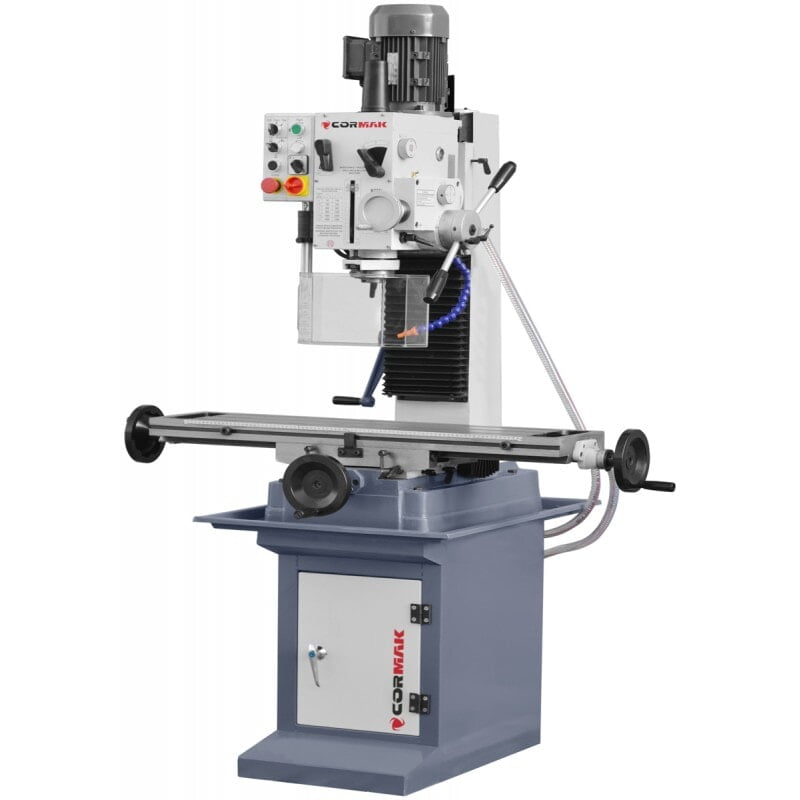

Milling and drilling machine ZX 7045 BXL CORMAK

This machine can be used for drilling, reaming and expanding holes up to 32/45 mm in cast iron and threading bolts up to M12 mm, milling up to a width of 80 mm, and a rebate up to 22 mm. It is also suitable for cutting and face milling. The ZX 7045 BXL version is standard equipped with a large work table with dimensions of 1000 x 240 mm and a cooling system Product characteristics HEAVY STABLE CAST IRON CASTING AUTOMATIC SPINDLE FEED THE HEIGHT OF THE MILL IS ADJUSTABLE ON SUPPORT AND NOT ON A COLUMN MASSIVE CROSS TABLE WITH A PRECISE GRIND SURFACE SWALLOW-TAIL GUIDES, SILENT OPERATION THANKS TO GRINDED GEAR WHEELS LEFT AND RIGHT SPEED ROTARY HEAD +/- 90 0 ADJUSTABLE HEAD HEIGHT BASE IN STANDARD INCLUDED TECHNICAL SPECIFICATIONS: Max. drilling diameter in steel / cast iron 32/45 mm Max. face mill diameter 80 mm Max. end mill diameter 32 mm Table dimensions 1000x240 mm X / Y / Z table travel 700/210/380 mm Distance between spindle face and table 80 - 460 mm Extend the spindle quill 120 mm Distance of the spindle axis from the column 290 (for shield 230) mm Head rotation angle +/- 90º Width of the T-slots 14 mm Spindle speeds 75/150/180/280/360/560/600/1000/1200/1600/2000/3200 rpm Spindle feeds 0.1; 0.18; 0.26 mm / rev Spindle taper MK4 Supply voltage 400V Engine power 1.3 / 1.8 kW External dimensions 1300x820x1460 mm WEIGHT 360 kg Accessories B16-13mm drill chuck MK4 / B16 mandrel MK4 / D27 mandrel Reduction sleeve MK4 / MK3 Reduction sleeve MK3 / MK2 Optional equipment swivel vices tilting vices precision vices indexing tables divisors threading heads milling heads end mills (HSS, HSSE, HSS-PM, VHM) drills cylindrical shank drills on the cone milling inserts manual and machine taps set of fasteners tool holders (for collets, Weldon) driving pins drill chucks PRICE ON REQUEST
