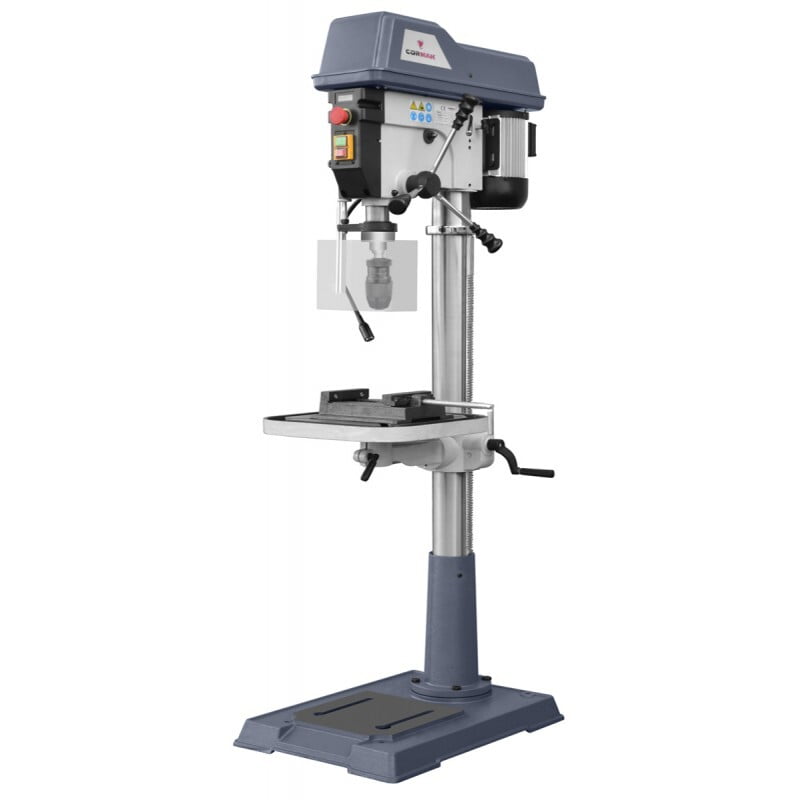

Drilling Machine Vario CORMAK Z5020

This machine, due to its rigid construction, provides accurate drilling. Tilting table furthers its drilling capabilities. Equipped with an electronic RPM indicator and drilling depth indicator. 125 mm vice in the set. This model is also equipped with smooth spindle speed adjustment. Machine features smooth spindle speed adjustment LED lamp worktable and base equipped with T-slots solid, torsion resistant column -45°/+45° tilting worktable drilling depth limiter with a scale Technical data Maximum drill bit diameter 25 mm Maximum chuck diameter 16 mm Spindle axis from column distance 215 mm Spindle taper MK3 Spindle movement range 150 mm Column diameter 80 mm Motor 400V / 50Hz / 1500 W Gearbox Yes Base dimensions 580x415 mm Table dimensions 356x356 mm Total height 1710 mm Spindle speed (50 Hz) 180–2000 rpm Table movement range 600 mm Boxed dimensions (length/width/height) 1510x690x256 mm Weight 95 kg
