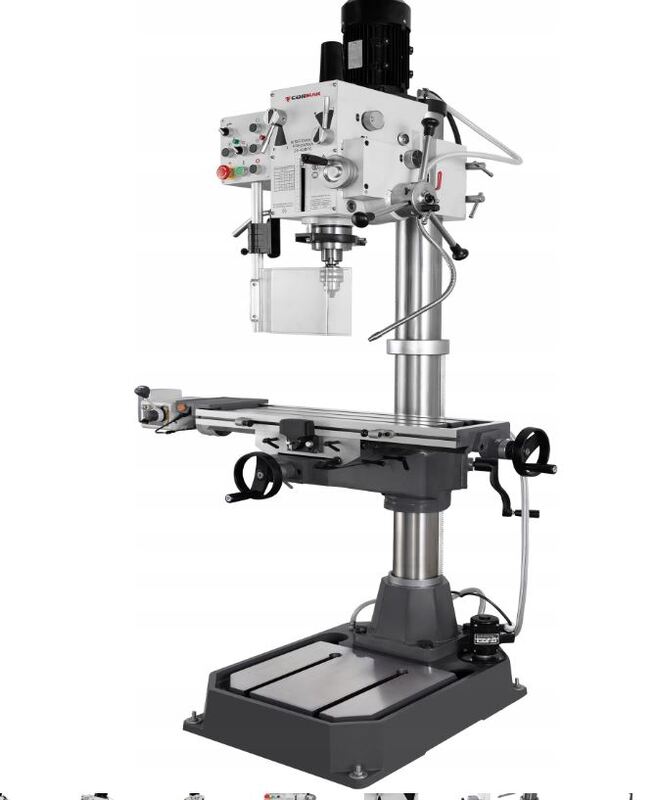

Milling and drilling machine CORMAK ZX40BPC

Possibility of head rotation +/- 90 degrees of spindle, possibility of head rotation +/- 90 degrees, automatic spindle feed, right and left rotation, large table, liquid cooling, automatic table feed in the x axis, powerful engine, ability to drill up to 40 mm.

Rotational speed up to 2500 rpm Machine characteristics

HEAVY STABLE CAST IRON AUTOMATIC SPINDLE FEED ADJUSTABLE HEAD HEIGHT MASSIVE CROSS TABLE WITH PRECISELY GRINDED SURFACE DOVtail-shaped guides QUIET OPERATION THANKS TO GROUND GEARS LEFT AND RIGHT ROTATIONS ROTATING HEAD +/- 90°

Technical data

Max. drilling size (steel/cast iron) 32/40mm

Face milling width 80mm

End milling width 22mm

Spindle extension 125mm

Spindle taper MT4

Spindle speed (1400 rpm motor) 50～2500min-1

Maximum distance of the spindle tip from the table 735mm

Maximum distance of the spindle tip from the base 1245mm

 Distance of the spindle from the column surface 272 mm

Dimensions of the work table 730x210mm

Base dimensions 690x520mm Engine 1.3/1.8kW

Cooling engine 40W Dimensions 1200x1000x1910mm

Weight 440 kg

 2 YEARS GUARANTEE
