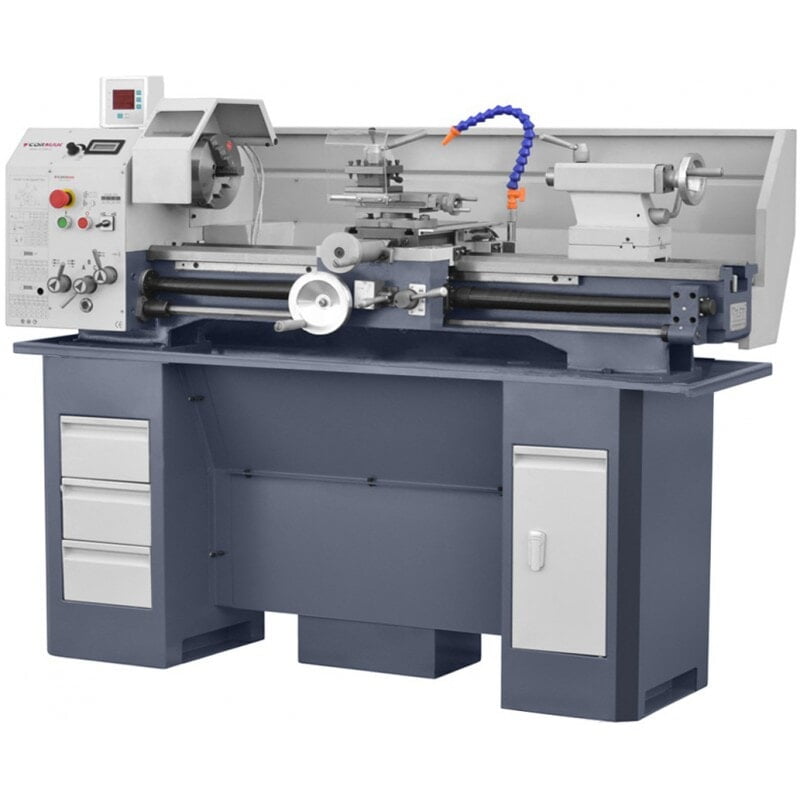

LATHE UNIVERSAL 310X900 CORMAK TU3109V

Machine features Precise design 2 axes digital readout Large spindle bore – Ø 36 mm Heavily ribbed prism bed made of gray iron Inductively hardened and precisely ground bed guides Ensured accuracy of spindle tip better than 0.009 mm Accuracy of lathe chuck speed better than 0.04 mm Left/right switch on the control panel With a lead screw for threading or automatic longitudinal feed Lead screw and feed shafts in two sintered bearings Automatic longitudinal and transverse feeds Lead screw and feed shaft guard Knobs by the slides with adjustable 0.04/0.02 precise scaling Included by default set of change gears for threading Emergency stop button Smooth and efficient drive of excellent spindle speed adjustment VARIO model equipped with an inverter for smooth spindle speed adjustment! Digital speed indicator By default comes with a solid steel base Technical data Swing over bed 310 mm Swing over cross slide 190 mm Centre width 900 mm Bed width 180 mm Spindle bore 38 mm Spindle tip MK5 Spindle speed 80 – 2000 rpm (adjustment in 2 ranges) Metric thread (18) 0.2 – 3.5 mm/turn Inch thread (21) 56 – 8 TPI Longitudinal feed 0.085 – 0.832 mm/turn Transverse feed 0.01 – 0.1 mm/turn Maximum upper slide travel 65 mm Maximum transverse support travel 210 mm Maximum longitudinal support travel 650 mm Tailstock spindle travel 100 mm Tailstock quill diameter 38 mm Tailstock quill taper MK3 Motor power 1.5 kW / 230V Dimensions 1520×675×1320 mm Weight 295 kg
