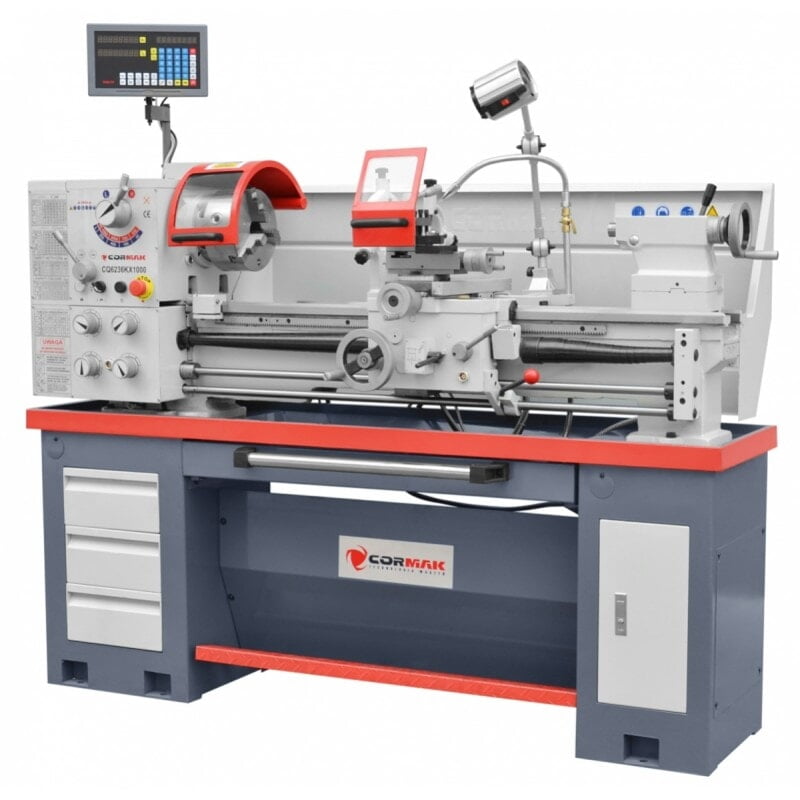

Universal Lathe 360x1000 CQ6236K-1000 CORMAK

CORMAK 360 is a new, improved model of the most popular metal lathe. Among other things, the tool holder cover, spindle bearing system, new digital readout have been improved. Suitable everywhere small scale turning has to be done. A NEW, IMPROVED MODEL !!! High-quality and reinforced spindle bearing system New cover system compliant with CE standards The latest model of digital axis reading Reinforced and modernized lathe base with drawers for tools and an extendable chip tray Machine characteristics Reinforced, ribbed surface of the lathe's bed provides maximum reduction of vibration, Additionally precisely ground, hardened bed Digital readout of the axis in standard equipment Equipped with a large spindle bore of 52 mm Also features high-quality and high-end spindle bearing system Efficient machining due to two automatic feeds and equipment with a roller and a draft bolt Hardened wheels in the spindle gear Adjustable overload clutch on pull shaft Feed choice lock: through a screw or a roller The possibility of machining the full range of threads without replacing the gear wheels The removable bridge enables the working of elements with an increased diameter Retractable chip tray and tool drawers for better and efficient work Technical data Swing over bed 360 mm Swing over cross slide 220 mm Swing over gap 490 mm Maximum turning length over gap 168 mm Bed width 187 mm Turning length in dead centres 970 mm Spindle tip D1-4 Spindle bore 52 mm Spindle speed 90–2000 rpm Number of spindle speeds 8 Longitudinal feed range 0.055–1.291 mm/turn Transverse feed range 0.014–0.345 mm/turn Maximum tool dimensions 16×16 mm Metric thread 0.4–7 mm Inch thread 4–60 T.P.I. Tailstock quill diameter 32 mm Tailstock quill tip MK3 Motor power 1.5 kW Pump power 0.1 kW Weight 570 kg Dimensions 1890×720×1500 mm Equipment Axes digital readout 200 mm 3-jaw lathe chuck 200 mm 4-jaw lathe chuck Drive plate Steady rest Follow rest Reduction sleeve Dead centre Cooling system Lighting Set of change gears Thread indicator/gauge Handling tools Lathe on a base User manual EC declaration of conformity Factory new machine, under warranty
