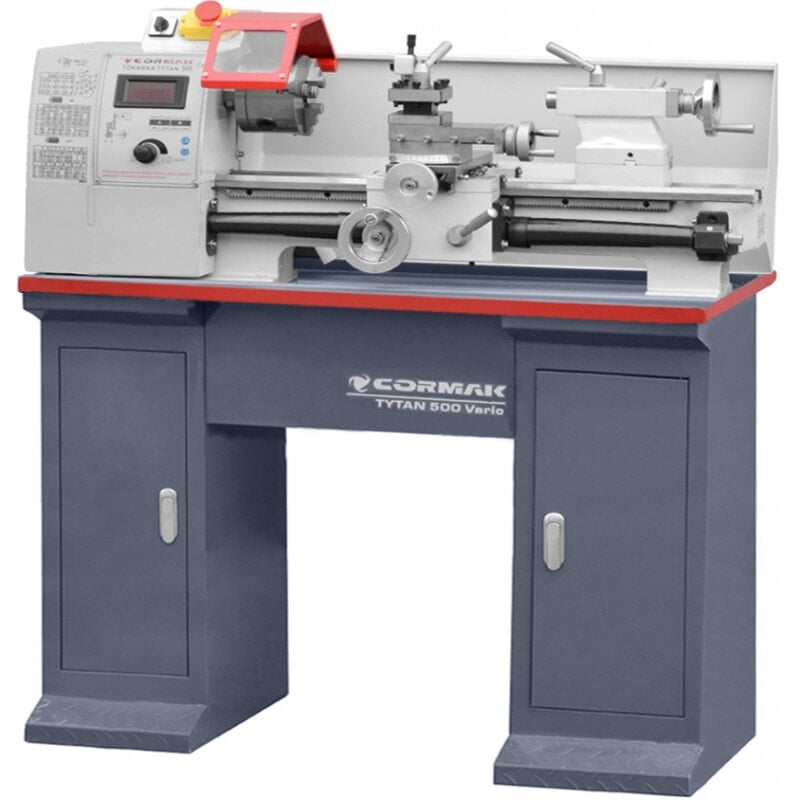

Lathe Universal with base TYTAN 500 CORMAK

Technical data Swing over bed 200 mm Swing over cross slide 140 mm Centre width 500 mm Bed width 100 mm Spindle bore 21 mm Spindle tip MK3 Spindle speed (smooth adjustment) 100–2500 rpm Metric thread (14) 0.3–3 mm/turn Inch thread (10) 10–44 Gg/1'' Longitudinal feed (3) 0.09; 0.15; 0.2 mm/turn Tool holder 4-slots Maximum cross support travel 55 mm Maximum transverse support travel 100 mm Maximum longitudinal support travel 376 mm Tailstock spindle travel 60 mm Tailstock quill taper MK2 Motor power 500 W / 230V Dimensions (without base) 900×390×340 mm Dimensions (with base) 900×390×1160 mm Weight 95 kg equipment 100 mm 3-jaw chuck Dead centres Left/right jaws Wrenches Gears Base
