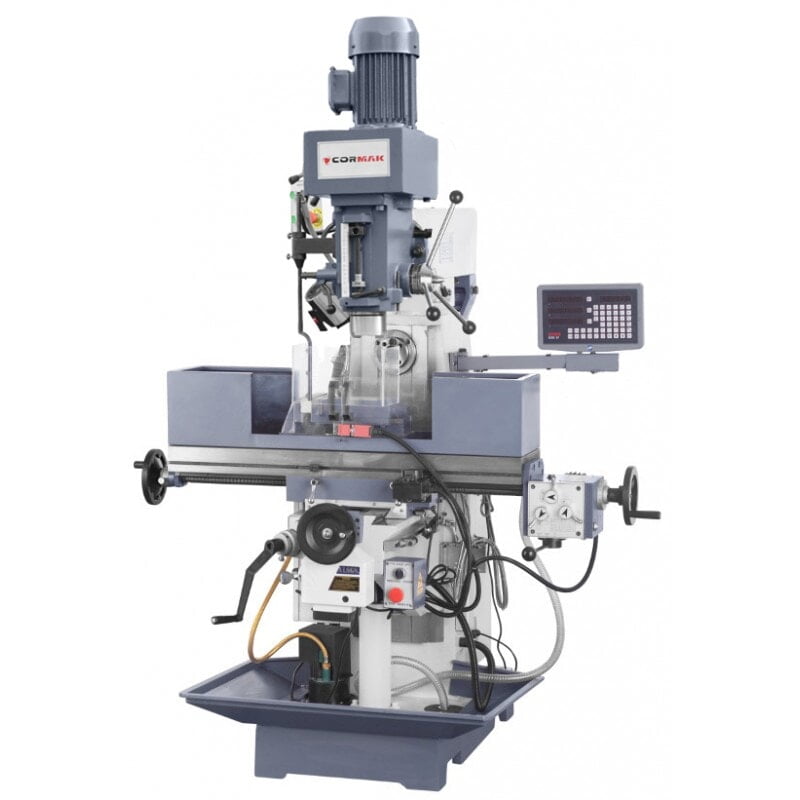

Milling and Drilling Machine CORMAK ZX7550ZB

Universal milling machine of solid construction, equipped with 2 spindles – horizontal and vertical with autofeed – powered by two independent motors of 2.2 and 1.5 kW. Autofed X and Y axes simplify handling. Machine description AUTOMATIC ELECTRIC FEED OF THE TABLE IN Y-AXIS AUTOMATIC MECHANICAL FEED TABLE IN X AXIS AUTOMATIC SPINDLE FEED HEAVY STABLE IRON CASTING VERY PRECISELY MADE MASSIVE CROSS TABLE WITH PRECISE SURFACE SWALLOW TAIL GUIDES IN ALL 3 AXES SILENT RUNNING THANKS TO GRINDED GEARS LEFT AND RIGHT ROTATION TURN HEAD +/- 90 ° Specifications Max. drilling diameter 50 mm Max. horizontal milling length 100 mm Max. vertical milling diameter 25 mm Max. threading diameter M16 Max. boring diameter 120 mm Spindle taper ISO 40 Number of spindle speeds 8.9 Spindle speed range 50Hz (rpm) 115-1750 (140-2100) Pawn 60-1350 (72-1620) Level Distance between spindle and column surface 200-700 mm Distance between spindle and table 100-480 mm Distance between spindle axis and table 0-380 mm Spindle travel 120 mm Table size 1000x240 mm Table travel 600x230 mm Table feed 24-720 mm / min (8 speed) Spindle feed 0.015; 0.08; 0.25 mm / rev Engine (R / H) 1.5 kW / 1.5 kW Overall dimensions 1120x1060x2035 mm Weight 970 kg Scope of delivery Digital readout for 3 axes SINO ISO 40 Morsea reduction sleeves Drill chuck B16 CE Declaration of Conformity Machine vice L - 160 mm Spindle moulder with set. collets for end mills Support for the horizontal spindle / eyepiece / Long cutter arbors. Basic tools 24V halogen lighting system Cooling system DTR-ka in English / li & gt; Optional equipment swivel vices tilting vices precision vices indexing tables divisors threading heads milling heads end mills (HSS, HSSE, HSS-PM, VHM) drills cylindrical shank drills on a cone milling inserts manual and machine taps set of fasteners tool holders (collets, Weldon) driving pins chucks PRICE ON REQUEST
