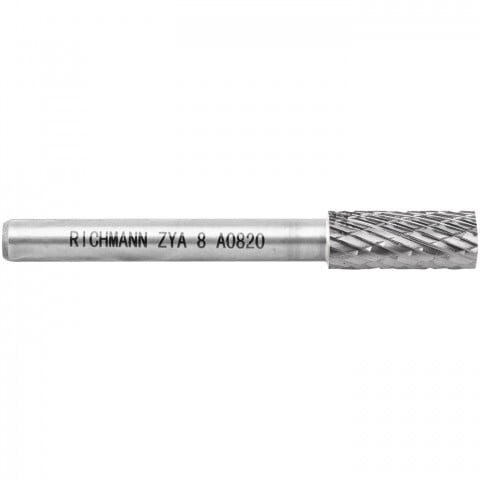

ROTARY BURS ZYA 8 X 20mm A0820 C8905 RICHMANN

High-quality cylindrical shank cutter for metal ZYA with dimensions 8 x 20 mm.

The dual alternating blades allow for grinding, smoothing and removal of most materials such as steel, cast iron, ceramics, plastics and wood.

The alternating bevel cutting edges produce short chips, which are easy to remove and allow for even work when machining ductile steels.

The working part is made of HM cemented carbides with high hardness and load resistance.

Wide range of applications, cutters are designed for, among others: removing burrs, chamfering edges and cleaning welds.

Designed for straight grinders with a shank diameter of 6 mm.

APPLICATION:

- hardened steel (HRC65)

- stainless steel

- cast iron

- non-ferrous metals

- ceramics

- plastics

- wood

- removal of burrs after welding

- edge chamfers

- cleaning of joints

- nickel and titanium based alloys

- other derived materials

TECHNICAL DATA:

Type: Cylindrical metal cutter

Material of manufacture: HM cemented carbide

Shank diameter [mm]: 6

Shape of working part: ZYA

Working diameter [mm]: 8 mm

Working length [mm]: 20 mm

Total length [mm]: 65 mm

Cutter type: A0820

Package dimensions [mm]: 120 x 23 x 23

Weight [kg]: 0.035
