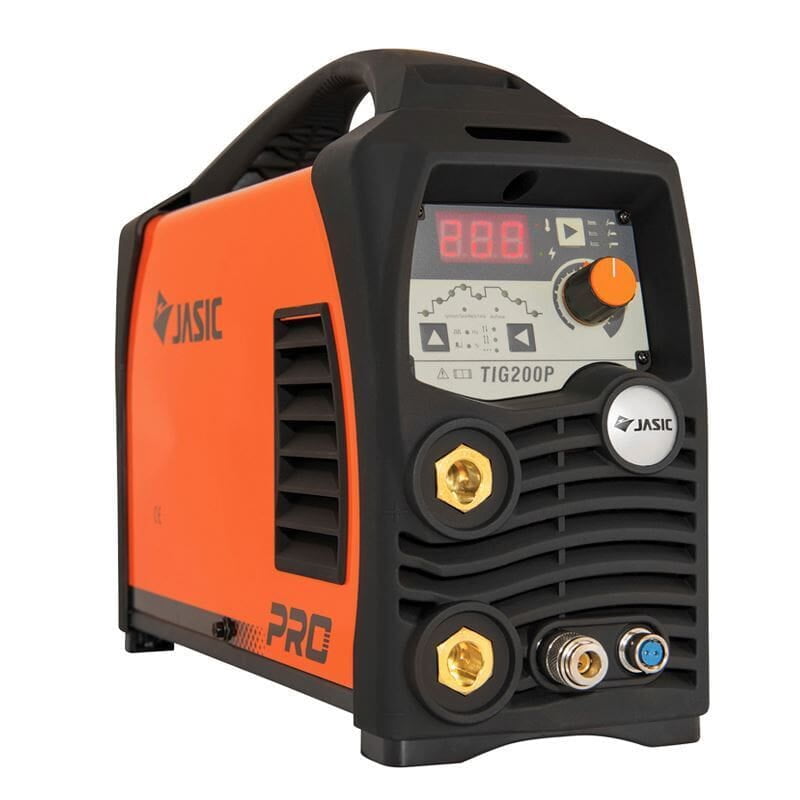

TIG 200 AMPS Pulse PFC DC Inverter Package Jasic ZXJT-200P-PFC
€1,000.00
Jasic TIG 200 Pulse PFC DC Inverter Package includes power source, TIG torch and adaptor, gas regulator, work return lead & clamp
Key Features
■ IGBT Inverter technology - for the professional user
■ Wide input voltage 95-265V
■ DC Pulse TIG/MMA
■ PFC energy saving technology
■ Digital control, HF arc ignition, 2T/4T
■ High frequency inverter, high efficiency
■ Compact size, lightweight and modern design
■ Heavy duty 35-50mm dinse sockets
■ Easy start, stable and reliable arc
■ Auto-compensation for voltage fluctuation
■ Advanced single PCB construction
■ Generator friendly**
Technical Data
Input Voltage 95-265V - AC 50/60Hz 115V 230V Ieff(A) 27.7 14.2
Input Power (kVA) 4 6
Current Range (A) TIG 10 - 200
MMA 10 -125 TIG 10 - 200
MMA 10 - 180
Duty Cycle @ 40°C TIG 160A @ 60%
MMA 125A @ 60%
TIG 200A @ 30%
MMA 180A @ 25%
No-Load Voltage (V) 65 Efficiency (%) 85
Pulse Frequency (Hz ) 0.5 - 200
Power Factor 0.99
Protection/Insulation Class IP21S/F
Dimensions (LxWxH mm) 420 x 135 x 277 Weight (Kg) 7.5
*5 year warranty subject to product registration
**Generators should have regulated output
Prices vat included
Product Details
Jasic TIG 200 Pulse PFC DC Inverter Package includes power source, TIG torch and adaptor, gas regulator, work return lead & clamp
Key Features
■ IGBT Inverter technology - for the professional user
■ Wide input voltage 95-265V
■ DC Pulse TIG/MMA
■ PFC energy saving technology
■ Digital control, HF arc ignition, 2T/4T
■ High frequency inverter, high efficiency
■ Compact size, lightweight and modern design
■ Heavy duty 35-50mm dinse sockets
■ Easy start, stable and reliable arc
■ Auto-compensation for voltage fluctuation
■ Advanced single PCB construction
■ Generator friendly**
Technical Data
Input Voltage 95-265V - AC 50/60Hz 115V 230V Ieff(A) 27.7 14.2
Input Power (kVA) 4 6
Current Range (A) TIG 10 - 200
MMA 10 -125 TIG 10 - 200
MMA 10 - 180
Duty Cycle @ 40°C TIG 160A @ 60%
MMA 125A @ 60%
TIG 200A @ 30%
MMA 180A @ 25%
No-Load Voltage (V) 65 Efficiency (%) 85
Pulse Frequency (Hz ) 0.5 - 200
Power Factor 0.99
Protection/Insulation Class IP21S/F
Dimensions (LxWxH mm) 420 x 135 x 277 Weight (Kg) 7.5
*5 year warranty subject to product registration
**Generators should have regulated output
Prices vat included
