Transport set WL3+WF3 (capacity 6 tons) CORMAK

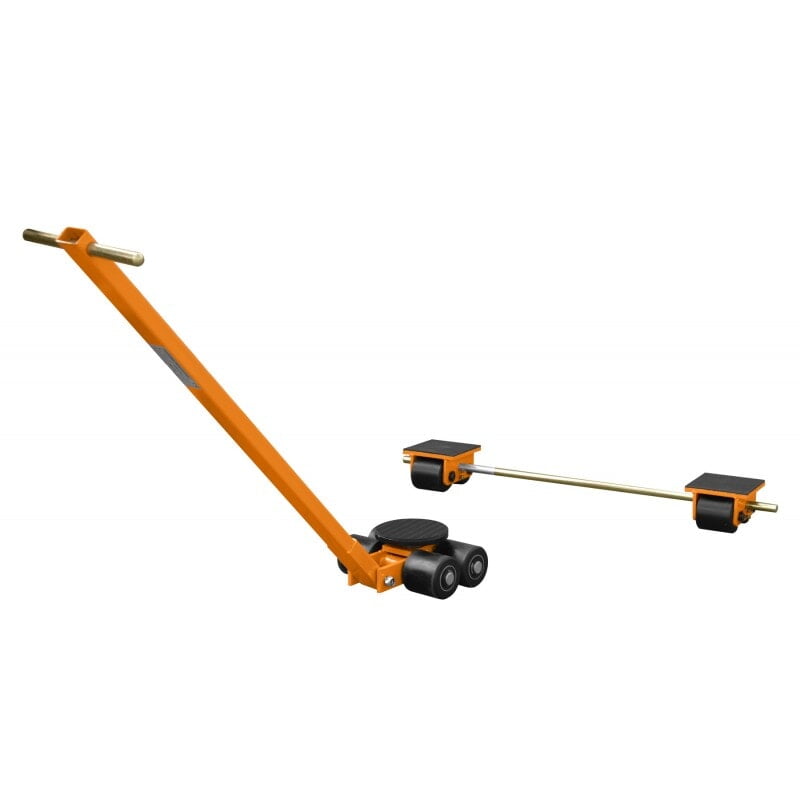

A set of transport rollers consisting of a WL3 mobile platform and a WF3 transport chassis. The maximum lifting capacity of the set is 6 tons. Transport rollers allow easy and safe transport of heavy objects. Thanks to the use of rollers with a polyurethane tread, the transported machine and the floor are not damaged. Technical parameters of WL3 ROLL SIZE 85x85mm NUMBER OF ROLLS 4 PAYLOAD 3000 kg LOADING HEIGHT 111mm BEARING SURFACE PER ELEMENT Ø148mm SUPPORT POINTS 1 DRAWBAR LENGTH 955mm TAKE ANGLE ± 90o DIMENSIONS (L x W) 269x203mm SCALES 12 kg Technical parameters of WF3 ROLL SIZE 85x85mm NUMBER OF ROLLS 4 PAYLOAD 3000 kg LOADING HEIGHT 110mm SUB- BASING SURFACE PER ELEMENT 150x150mm SUPPORT POINTS 2 CONNECTOR LENGTH 1000mm TROLLEY BASE WIDTH 300 - 940mm SCALES 15KG
