ELECTRIC CONSTRUCTION WINCH 30M 500/999KG KD1649
ELECTRIC CONSTRUCTION WINCH 30M 500/999KG KD1649

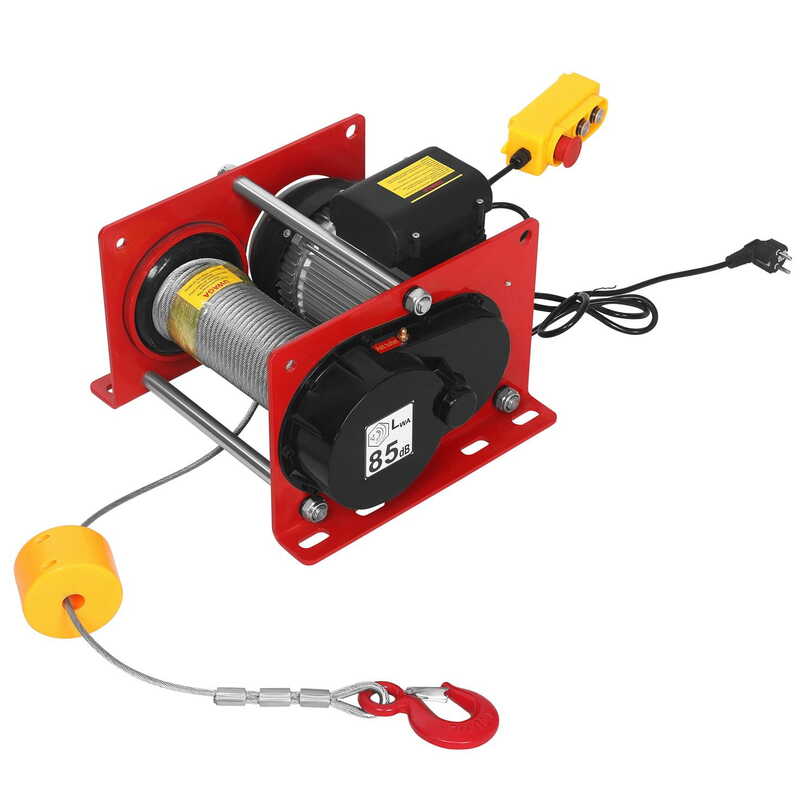

The KD1649 electric construction winch is a professional device for lifting and lowering heavy loads. Thanks to its robust construction and powerful 1.9 kW motor, it is ideal for construction, warehouse, and workshop work. It can lift loads up to 500 kg using a single rope, and up to 999 kg using a dual-rope system.
A long operating range (30 m for one rope / 15 m for two ropes), efficient winding speed (9–17 m/min), and a reliable 230V power supply enable efficient and safe material handling. The device also features a low noise level and convenient, quick installation.
2 YEARS GUARANTEE
PRODUCT FEATURES:
✅ Maximum lifting capacity 500 kg (1 rope) / 999 kg (2 ropes)
✅ Range 30 m (1 rope) / 15 m (2 ropes)
✅ Steel rope with a diameter of 6 mm
✅ High efficiency: 9–17 m/min
✅ Powerful 1.9 kW motor, voltage 230V / 50Hz
✅ Quiet operation mode – only 80 dB(A)
✅ Designed for construction, workshop and warehouse use
TECHNICAL DATA:
| ⚙️ Model | KD1649 |
| ⚙️ Max. lifting capacity (1 rope) | 500 kg |
| ⚙️ Max. lifting capacity (2 ropes) | 999 kg |
| ⚙️ Range (1 rope) | 30 m |
| ⚙️ Range (2 ropes) | 15 m |
| ⚙️ Rope diameter | 6 mm |
| ⚙️ Lifting speed | 9–17 m/min (depending on the mode) |
| ⚙️ Engine power | 1.9 kW |
| ⚙️ Tension | 230V / 50Hz |
| ⚙️ Circuit current (inrush) | 6.9 A / 21 A |
| ⚙️ Noise level (LwA) | 85 dB(A) |
| ⚙️ Noise level (LpA) | 80 dB(A) |
| ⚙️ Net weight | 40 kg |
