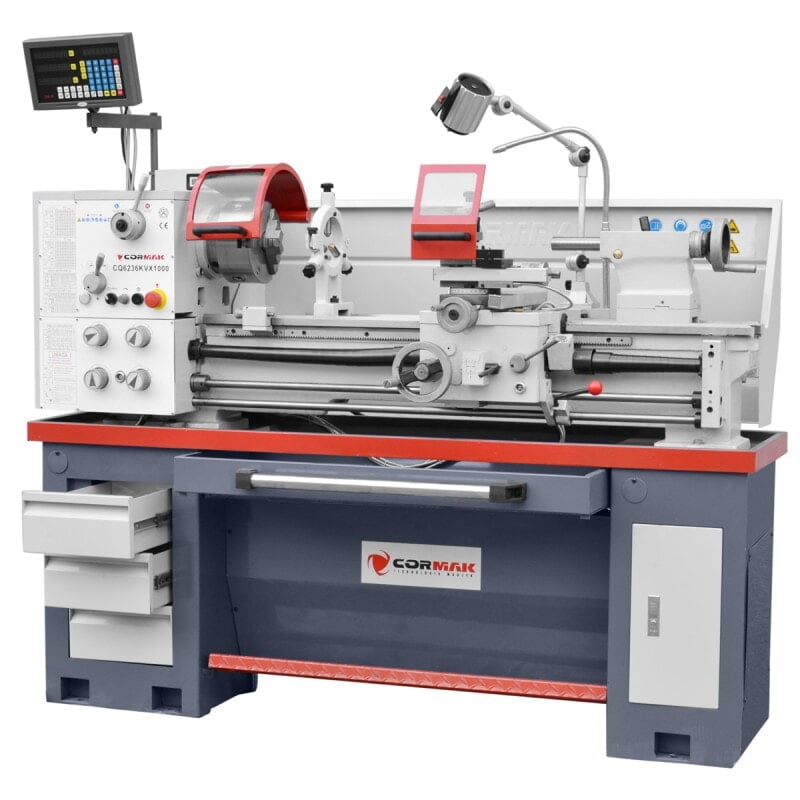

Lathe Universal 360x1000 VARIO CORMAK

CORMAK 360 series lathes are a new, improved version of the popular lathes for metal. Some of the improvements include the tool holder, spindle bearings and the new digital readout. Useful in manufacturing facilities, workshops and tool shops. Perfect for low quantity production. VARIO model is equipped with an inverter for smooth spindle speed adjustment. High-quality and strengthened spindle bearings New, EC compliant system of guards The newest model of digital readout for axes Enhanced and upgraded lathe base with drawers for tools and retractable chips tray Machine features Inductively hardened bed guides Tempered change gears in the spindle gearbox Adjustable friction clatch on the feed shaft Capability of machining full range of threads without the need to replace change gears in the drive unit Choice lock: either through the screw or the shaft Removable bridge Ruler for tapers (optional) VARIO model equipped with an inverter for smooth spindle speed adjustment Technical data Swing capacity 360 mm Swing over cross slide 208 mm Swing over gap bridge 480 mm Maximum turning length in gap bridge 179 mm Distance between centres 1000 mm Spindle bore 38 mm Spindle tip MK5 Spindle speed 70–2000 rpm Inch thread 4–60 T.P.I. Metric thread 0,4–7 mm Longitudinal feed range 0,055–1,291 mm/turn Transverse feed range 0,014–0,345 mm/turn Tool holder swivel angle ±90° Compound travel 76 mm Cross slide travel 180 mm Carriage slide travel 850 mm Tailstock quill diameter 32 mm Tailstock quill tip MK3 Tailstock sleeve travel 100 mm Motor power 1,1 kW / 400V Motor speed 1440 rpm Weight 575 kg Dimensions 1890×750×1500 mm Equipment VARIO model equipped with smooth spindle speed adjustment Axes digital readout 200 mm 3-jaw lathe chuck 250 mm 4-jaw lathe chuck Steady rest Follow rest Reducing sleeve Dead centre Cooling system Lighting Set of change gears Thread indicator/gauge Handling tools Lathe on a base User manual EC declaration of conformity Factory new machine, under warranty
