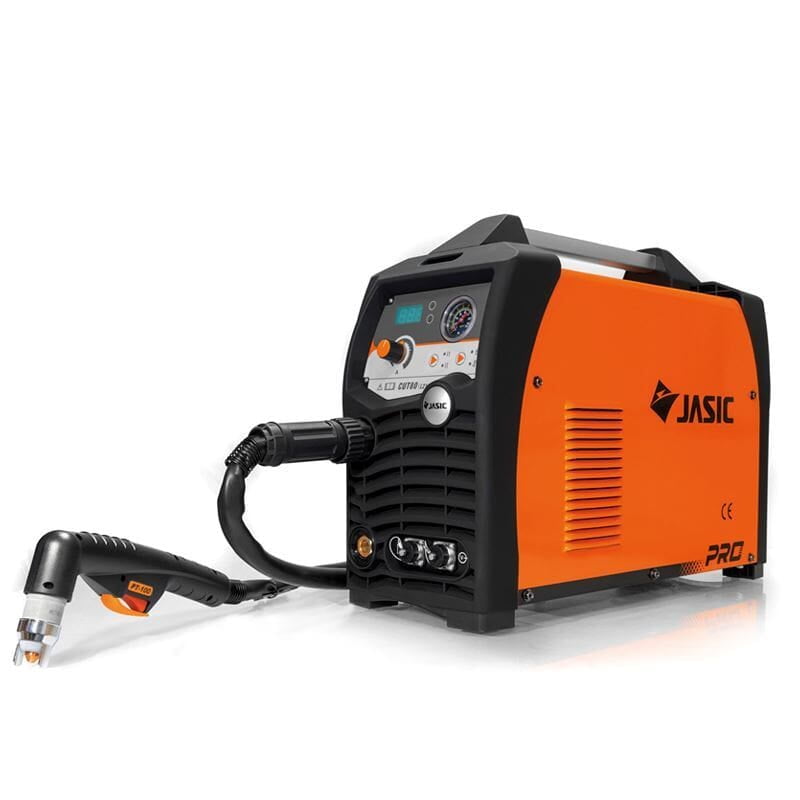

Plasma Inverter Cut 81 25mm clean cut Jasic 5 years guarantee ZXJP-81
€2,200.00
Jasic Cut 81 Plasma Inverter Package includes power source, plasma torch, work return lead and clamp
Key Features
■ Latest IGBT 80A Plasma Inverter
■ Lightweight, portable robust design
■ Variable cutting control - 25mm cut on mild steel
■ Non HF ignition
■ LED display
■ Simple operation
■ Smooth precise cutting of steel, stainless, cast iron, brass, copper & aluminium
■ CNC connection for automated cutting
■ Inbuilt air regulator with pre-set air pressure
■ Generator friendly**
■ Includes PT100 plasma hand torch
Technical Data
Input Voltage AC 400V - 50/60 Hz Ieff(A) 14
Input Power (kVA) 15.8
Current Range (A) 20 - 80
Duty Cycle @ 40°C 80A @ 40%
Cutting Capacity (Clean) 25 mm
Cutting Capacity (Severance) 30 mm
Efficiency (%) 85 Power Factor 0.9
Protection/Insulation Class IP21S/F
Compressed Air Requirement 200 Ltr/Min @ 5 Bar (73 psi)
Dimensions (LxWxH mm) 555 x 210 x 415 Weight (Kg) 15
