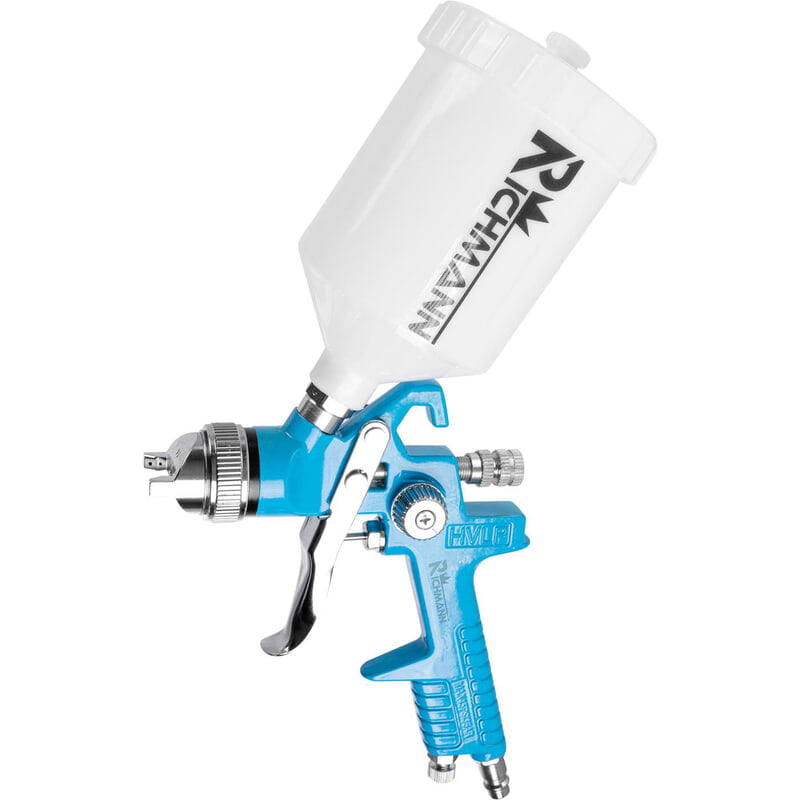

SPRAY GUN 1,4MM NOZZLE, 0,6 L RICHMANN C0858
Description:
HVLP paint spray gun with a 600 ml tank.
Designed for precise application of paints and varnishes using compressed air.
It operates on the HVLP (High Volume Low Pressure) principle, which atomizes paint or other liquids contained in a tank in a cloud of air.
The gun is extremely economical in paint consumption because it paints with a large volume at low pressure.
It is fitted with a 1.4 mm brass spray nozzle.
Recommended pressure range is 2-3 bar (30-45 PSI).
It can be used with small compressors.
The body is made of aluminum.
Equipped with a pressure adjustment knob located at the bottom, it acts as a reducer, allowing you to regulate the air pressure.
The flow adjustment knob is located on the side of the gun body, allowing you to adjust the paint flow.
The fluid volume adjustment knob, located at the rear, above the handle, controls the paint dispensing through the nozzle.
The 600 ml composite tank is screwed in with a metal thread.
It mounts with a ¼" connector. It features
gravity-fed material.
It also has a hanging loop.
The product meets all CE standards.
The set also includes a filter, wrench, and brush.
TECHNICAL DATA:
Type: HVLP paint gun
Nozzle diameter [mm]: 1.4
Pressure range [bar]: 2 - 3
Pressure range [PSI]: 30 - 45
Tank capacity [ml/cc]: 600
Connector [inch]: 1/4"
Needle: brass
Material feeding: gravity
Standards: CE
Catalog No.: C0858
EAN: 5906741608589
Packaging dimensions [mm]: 225 x 125 x 125
Weight [kg]: 0.750
