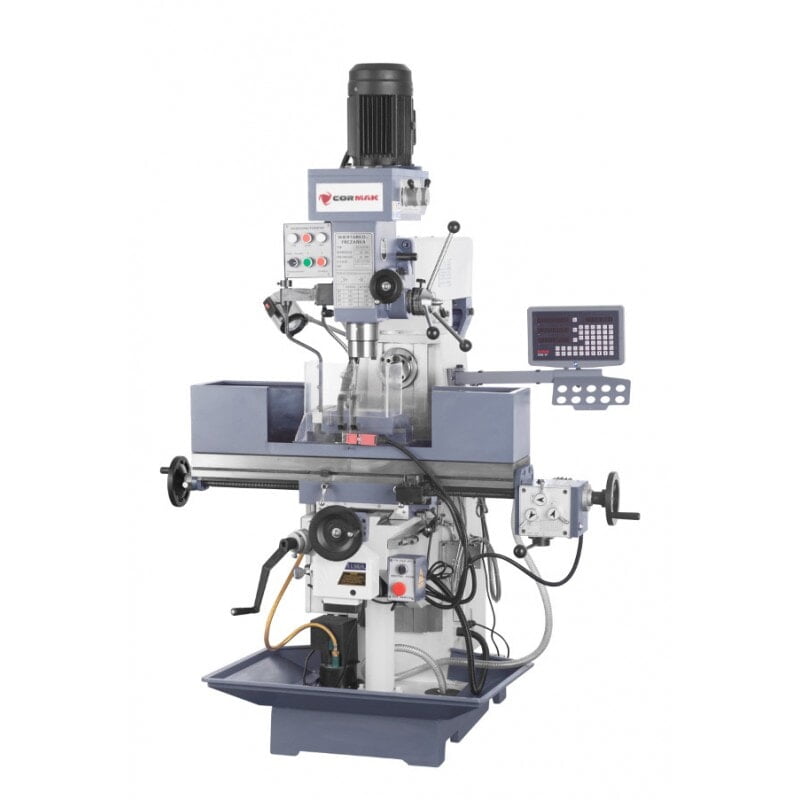

Milling and Drilling Machine ZX7550CW CORMAK

Compact, universal milling machine with a swivel head, an extendable quill and a horizontal spindle. By default equipped with automatic mechanical longitudinal feed and electric transverse autofeed. Intended for tool shops and renovation departments. Machine characteristics AUTOMATIC TABLE FEED IN X, Y AXIS MECHANICAL FEED OF THE TABLE IN THE Z AXIS HEAVY STABLE IRON CASTING VERY PRECISELY MADE MASSIVE CROSS TABLE WITH PRECISE GRIND SURFACE SWALLOW TAIL GUIDES IN ALL 3 AXES SILENT OPERATION THANKS TO GRINDED GEAR WHEELS LEFT AND RIGHT SPEED ROTARY HEAD +/- 90 ° Specifications Max. drilling diameter 50 mm Max. horizontal milling length 100 mm Max. vertical milling diameter 25 mm Max. threading diameter M16 Max. boring diameter 120 mm Spindle taper ISO 40 Number of spindle speeds 8.9 Spindle speed range 50Hz (rpm) 115-1750 (140-2100) Pawn 60-1350 (72-1620) Level Distance between spindle and column surface 200-700 mm Distance between spindle and table 100-480 mm Distance between spindle axis and table 0-380 mm Table size 1000x240 mm Table travel 600x230 mm Table feed 24-720 mm / min (8 speed) Spindle feed 0.015; 0.08; 0.25 mm / rev Engine (R / H) 1.5 kW / 1.5 kW Overall dimensions 1120x1060x2035 mm Weight 970 kg Equipment dependent on version digital readout for 3 SINO axes reduction sleeves ISO 40 / Morsea drill chuck 1 - 16 mm EC declaration of conformity machine vise L - 160 mm spindle for milling machine with set. collets for end mills horizontal spindle rest / eyepiece long cutter arbors basic tools 24V halogen lighting system cooling system user manual in English Optional equipment swivel vices tilting vices precision vices indexing tables divisors threading heads milling heads end mills (HSS, HSSE, HSS-PM, VHM) drills cylindrical shank drills on a cone milling inserts manual and machine taps set of fasteners tool holders (collets, Weldon) driving pins drill chucks
