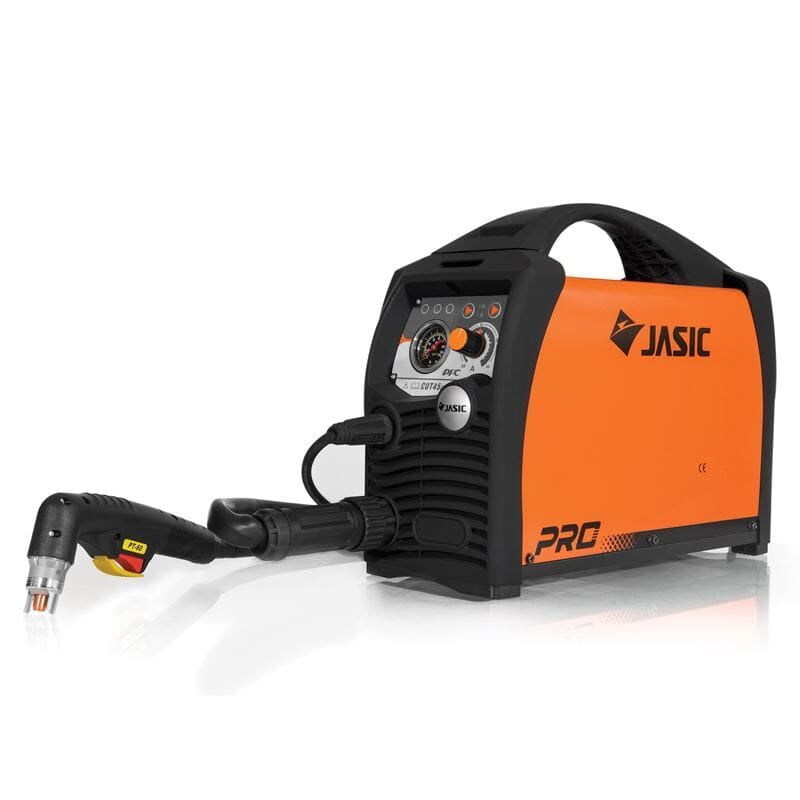

Plasma Inverter Cut 45 PFC 15mm clean cut Jasic 5 years guarantee ZXJP-45PWV
€1,600.00
Professional high-end plasma cutter with latest PFC technology The Jasic Cut 45P plasma cutter is equipped with PWM technology and high powered IGBT components is the perfect solution for cutting low carbon steel, stainless steel and aluminium. This user-friendly 'wide voltage' plasma cutter offers smooth, fast and precise cutting on material up to 15mm and a maximum of 20mm, where a severance cut is required. Another outstanding feature of this high specification plasma cutter is PFC (Power Factor Correction) that provides substantial energy saving benefits for the user.
Key Features
■ IGBT Plasma Inverter
■ Wide input voltage 95-265V
■ Lightweight, portable modern design
■ Variable cutting control
■ LED control display
■ Simple operation
■ Smooth precise cutting
■ Generator friendly**
■ Suitable for automated cutting (optional)
■ Includes PT60 plasma torch
Order Code: JP-45PWV Plasma Cut 45 PFC Wide Voltage
Technical Data
Input Voltage AC 95-265V - 50/60 Hz Ieff(A) 17 13.5
Input Power (kVA) 3.6 5.29
Current Range (A) 20 - 30 20 - 45
Duty Cycle @ 40°C 30A @ 30% 45A @ 35%
Cutting Capacity (Clean) 15 mm
Cutting Capacity (Severance) 20 mm
Efficiency (%) 85 Power Factor 0.99
Protection/Insulation Class IP21S/F
Compressed Air Requirement 170 Ltr/Min @ 4.5 Bar (65 psi)
Dimensions (LxWxH mm) 439 x 165 x 328
Weight (Kg) 9.2
*5 year warranty subject to product registration
**Generators should have regulated output
