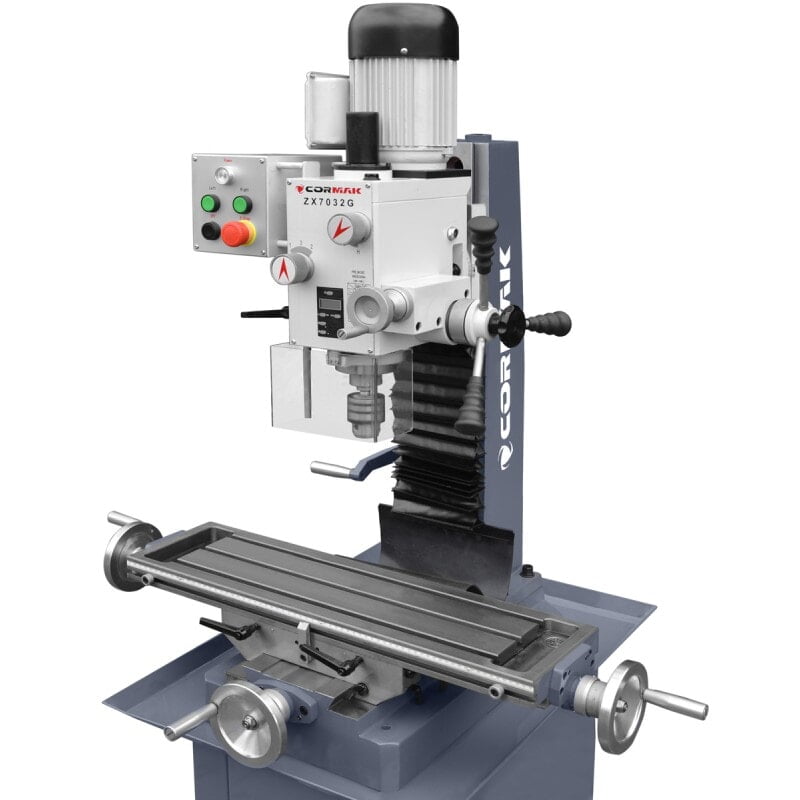

Milling and drilling machine CORMAK ZX7032G 230V WITH OUT BASE

This machine can be used for drilling, reaming and flaring holes up to 32 mm in cast iron and tapping holes up to M12, milling up to 80 mm wide and rebate up to 22 mm. It is also suitable for cutting and face milling. Machine description Tilting head in the range of +/- 45° Spindle extension digital display Table with a gutter and a coolant drainage system Technical parameters max. drilling diameter in steel/cast iron 32mm max. face mill diameter 63mm max. end mill diameter 16mm max. thread diameter M12 Table dimensions 700x190mm X/Y table travel 460/225mm The distance from the spindle nose to the table 65 - 460mm Spindle quill extension 75mm The distance of the spindle axis from the column 170mm Head rotation angle +/- 45° Width/spacing/number of T-slots M10/T12 / 63mm / 3 Spindle speeds (6 gears) 95 / 180 / 270 / 500 / 930 / 1420 rpm Spindle taper MK3 Motor power / power supply 0.9KW/230V Weight (without stand) 185 kg Dimensions (without stand) 1050x750x1250mm The base of the milling machine is available as an additional option.
